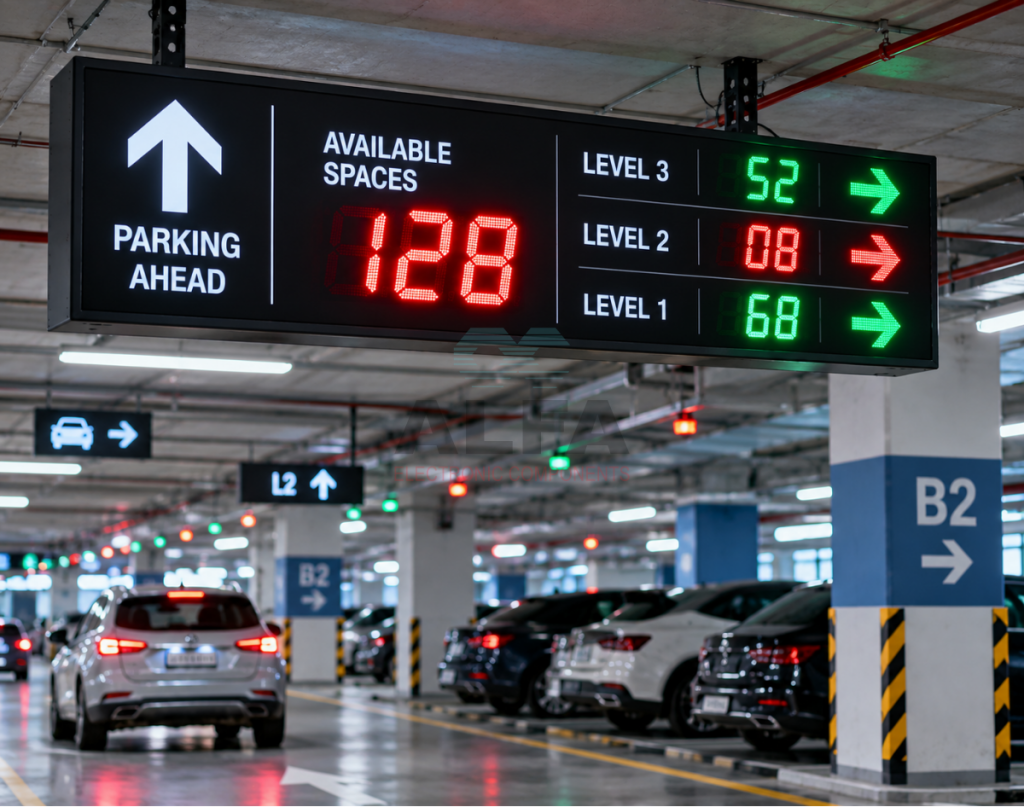

Smart parking management systems require clear visual indication of available parking spaces, entry and exit counts, parking status and directional guidance. Alfa Electronic Components supplies 7 Segment LED Displays, Arrow LED Displays, Alphanumeric Segment Displays, Dotmatrix Displays and Jumbo 7 Segment Displays for integration into parking guidance systems, parking counters, entry/exit equipment and related smart parking electronics.
Smart parking systems help drivers identify available parking spaces, navigate within parking facilities and understand entry, exit and occupancy information.
7 Segment LED Displays are suitable for displaying numerical information such as available parking spaces, occupied-space counts, floor-wise availability and vehicle counts.
Arrow LED Displays provide directional indication and can be incorporated into parking guidance systems to direct vehicles toward parking zones, floors, entry points or exits.
Where parking equipment needs to communicate letters and numbers, Alphanumeric Segment Displays can be considered, while Dotmatrix Displays can support characters, symbols and simple visual information.
For larger parking facilities where numerical information needs to be visible from a greater distance, the Jumbo 7 Segment Display can also be considered.
Alfa Electronic Components offers display components for manufacturers developing smart parking systems, parking guidance equipment, vehicle counters and parking control electronics.
The 1 Digit 7 Segment Display is a numeric LED display designed to present numbers from 0 to 9 clearly in electronic instruments, digital meters,…
A Two Digit Seven Segment Display is a compact LED numeric display designed to present values from 00 to 99 in digital counters, timers, measuring…
A 3 Digit 7 Segment Display is an integrated numeric LED display designed to present values from 000 to 999 in digital meters, counters, timers,…
A 4 Digit 7 Segment Display is an integrated numeric LED display designed to present values from 0000 to 9999 in digital meters, counters, timers,…
A 5 Digit 7 Segment Display is an integrated numeric LED display designed to present values from 00000 to 99999 in counters, measuring instruments, weighing…
A 6 Digit 7 Segment Display is an integrated numeric LED display designed to present values from 000000 to 999999 in counters, totalisers, meters, weighing…
A Single Digit Bi Color Seven Segment Display is a dual-color numeric LED display designed to show one digit from 0 to 9 while supporting…
A Seven Segment Jumbo Display is a large-size numeric LED display designed for applications where numbers must be visible from a longer distance. It is…
A 14/16 Segment Alphanumeric Display is an LED character display designed to show numbers, alphabets and selected symbols more clearly than a standard seven segment…
A 5x7 Round Dot Matrix Display is an LED character display made with a 5-column by 7-row dot arrangement, designed to show alphabets, numbers, symbols…
A 5x7 Square Dot Matrix Display is an LED character display designed with a 5-column by 7-row matrix arrangement, using square LED dots to show…
A 5x7 Round Bi Colour Dot Matrix Display is a dual-colour LED matrix display designed to show alphabets, numbers, symbols, short messages and status indications…
An 8x8 Round Dot Matrix Display is an LED matrix display designed with an 8-column by 8-row round dot arrangement, suitable for displaying alphabets, numbers,…
An 8x8 Bi Color Dot Matrix Display is a dual-color LED matrix display designed with an 8-column by 8-row round dot arrangement. It is suitable…
A Single Color LED Bar Graph is a linear LED display used to show level, progress, status, signal strength, battery condition, audio level, process value…
A Multi Color LED Bar Graph is a linear LED display used to show level, progress, signal strength, battery condition, audio level, process value or…
A Light Bar – Square Series is a single color LED indicator display designed in a square body format for status indication, signal indication, panel…
A Light Bar – Rectangle Series is a rectangular LED indicator display used for status indication, signal indication, panel indication, equipment display and machine interface…
A Light Bar – Round Series is a circular LED indicator display used for status indication, signal indication, panel indication, equipment display and machine interface…
| Application | Suitable Display Products |
| Parking Space Availability | 2 Digit 7 Segment Led Display, 3 Digit 7 Segment Led Display, 4 Digit 7 Segment Led Display |
| Floor-Wise Availability | 2 Digit 7 Segment Led Display, 3 Digit 7 Segment Led Display, Jumbo 7 Segment Display |
| Entry Vehicle Counter | 3 Digit 7 Segment Led Display, 4 Digit 7 Segment Led Display, 5 Digit 7 Segment Led Display |
| Exit Vehicle Counter | 3 Digit 7 Segment Led Display, 4 Digit 7 Segment Led Display, 5 Digit 7 Segment Led Display |
| Large Parking Availability Board | Jumbo 7 Segment Display |
| Up / Down Ramp Guidance | Arrow LED display up-down |
| Parking Direction Guidance | Directional LED arrow display |
| Floor / Zone Information | Alphanumeric Segment Display, 5×7 Round Dotmatrix Display, 5×7 Square Dotmatrix Display |
| Character & Symbol Indication | 5×7 Round Dotmatrix Display, 5×7 Square Dotmatrix Display, 8×8 Round Dotmatrix Display |
| Bi-Colour Character / Symbol Indication | 5×7 Round Bi Color Dotmatrix Display, 8×8 Bi Color Dotmatrix Display |
Seven Segment LED Displays provide a straightforward numerical format for displaying the number of available spaces, occupied spaces and vehicle counts.
Parking facilities vary significantly in capacity. Alfa’s Seven Segment range allows the number of numerical positions to be selected according to the parking system’s requirements.
Smaller zones may require a 2 Digit or 3 Digit 7 Segment Led Display, while larger facilities and cumulative counters may require four or more digits.
Arrow LED display up-down and Directional LED arrow display provide dedicated visual elements for directing vehicles through parking facilities.
They can be incorporated into electronic guidance systems for ramps, floors, parking zones and entry/exit routes.
Parking information often needs to be understood while a vehicle is moving toward an entrance, junction or parking zone.
The Jumbo 7 Segment Display can be considered where larger numerical characters are required for greater viewing distance.
Some parking systems need to communicate floor names, zone information or status in addition to numerical availability.
Alphanumeric Segment Displays and Dotmatrix Displays can support these additional information requirements.
LED displays can be incorporated into PCB-based electronic assemblies developed for parking guidance systems, vehicle counters, availability displays and smart parking control equipment.
Selecting the right LED display depends on parking capacity, type of information, required direction indication, viewing distance and electronic design.
Determine the maximum numerical value that needs to be displayed.
Small parking zones → 2 Digit 7 Segment Led Display
Medium parking facilities → 3 Digit 7 Segment Led Display
Larger parking counts → 4 Digit 7 Segment Led Display
Extended or cumulative vehicle counts → 5 Digit 7 Segment Led Display
The selected number of digits should accommodate the maximum value expected by the parking management system.
Consider what information the parking equipment needs to communicate.
Available-space count → Seven Segment LED Displays
Entry/exit vehicle count → Seven Segment LED Displays
Large numerical availability → Jumbo 7 Segment Display
Up/down direction → Arrow LED display up-down
Directional guidance → Directional LED arrow display
Letters and numbers → Alphanumeric Segment Display
Characters and symbols → Dotmatrix Displays
Parking guidance systems should consider the type of direction information required by the equipment.
A multi-level parking facility may require up/down indication for ramps, while internal junctions may require directional arrows toward different parking zones or exits.
The character size should correspond with the distance from which drivers need to identify the information.
Displays positioned directly above individual lanes may have different requirements from large availability boards installed at parking entrances or internal junctions.
Display colour should be selected according to the equipment design, required contrast, ambient environment and available display configuration.
Bi-colour Dotmatrix Displays can be considered where colour differentiation forms part of the visual information system.
Important integration parameters include:
Number of digits
Character height
Display dimensions
Arrow orientation
Pin configuration
PCB layout
Available mounting space
Driver circuit compatibility
Viewing angle
Equipment enclosure dimensions
Required display arrangement
These requirements should be considered before finalising a display for parking equipment.
Parking systems may be installed at entrances, exits, ramps, indoor parking levels or other areas with different lighting and viewing conditions.
The installation environment should therefore be considered when selecting display size, visibility and overall configuration.
Smart parking equipment often requires multiple pieces of information to be communicated within the same display assembly.
For example, a parking guidance board may need to combine:
Available Parking Spaces
Floor or Zone Information
Directional Arrow
Entry / Exit Information
Parking Status
Multiple Floor-Wise Counts
Depending on the equipment design, Seven Segment LED Displays, Arrow LED Displays, Alphanumeric Segment Displays and Dotmatrix Displays can be arranged together within a custom display configuration.
Alfa Electronic Components can discuss application requirements and help identify suitable display components or configurations for parking management and guidance equipment.
Custom parking display modules
Numerical and arrow display combinations
Multi-digit parking counter assemblies
Directional LED display arrangements
Multiple Seven Segment display configurations
Character and numerical display combinations
Custom parking guidance display modules
Alfa LED display products can be considered for integration into electronic equipment and systems including:
Smart Parking Management Systems
Parking Guidance Systems
Parking Space Availability Displays
Parking Availability Counters
Vehicle Entry Counters
Vehicle Exit Counters
Floor-Wise Parking Displays
Multi-Level Parking Guidance Systems
Parking Zone Indicators
Parking Entrance Displays
Parking Exit Displays
Ramp Direction Indicators
Directional Parking Signs
Parking Occupancy Systems
Parking Control Equipment
Commercial Parking Systems
OEM Parking Electronics
2 Digit, 3 Digit and 4 Digit 7 Segment Led Displays can be considered for displaying available parking spaces. The correct configuration depends on the maximum number of spaces the system needs to display.
A 3 Digit or 4 Digit 7 Segment Led Display can be considered for many parking availability applications, while the exact number of digits should be selected according to the facility capacity.
Parking guidance systems can combine Seven Segment LED Displays for available-space counts with Arrow LED display up-down or Directional LED arrow display for vehicle direction guidance.
The Arrow LED display up-down can be considered for systems requiring ramp or floor-direction indication. Seven Segment displays can be added to communicate available spaces on different levels.
3 Digit, 4 Digit and 5 Digit 7 Segment Led Displays can be considered for vehicle entry and exit counters depending on the counting range required by the system.
A Jumbo 7 Segment Display can be considered where available-space counts or other numerical information need to remain visible from a greater viewing distance, such as at parking entrances or larger internal guidance points.
The Alphanumeric Segment Display can be considered where both letters and numbers are required. Dotmatrix displays can also support characters and symbols depending on the system design.
Yes. Selected 5×7 and 8×8 Dotmatrix Displays can be considered for characters, symbols and simple visual information within parking management equipment.
The number of digits should be selected according to the maximum value and resolution of the information being displayed. Energy, voltage, current, time and transaction values may each require different digit configurations.
Custom display requirements can be discussed according to the parking system design, required numerical information, arrow direction, display arrangement and available technical specifications. Drawings, samples or application details can help in understanding the requirement.
