A 14/16 Segment Alphanumeric Display is an LED display component designed to show characters beyond simple numbers. Unlike a standard seven segment display, which is mainly used for numeric values from 0 to 9, a 14 segment or 16 segment display can represent alphabets, numbers and selected symbols with better readability.
This makes it suitable for electronic products where the display needs to show short codes, letters, status messages, mode indications, fault codes, unit abbreviations or alphanumeric identifiers.

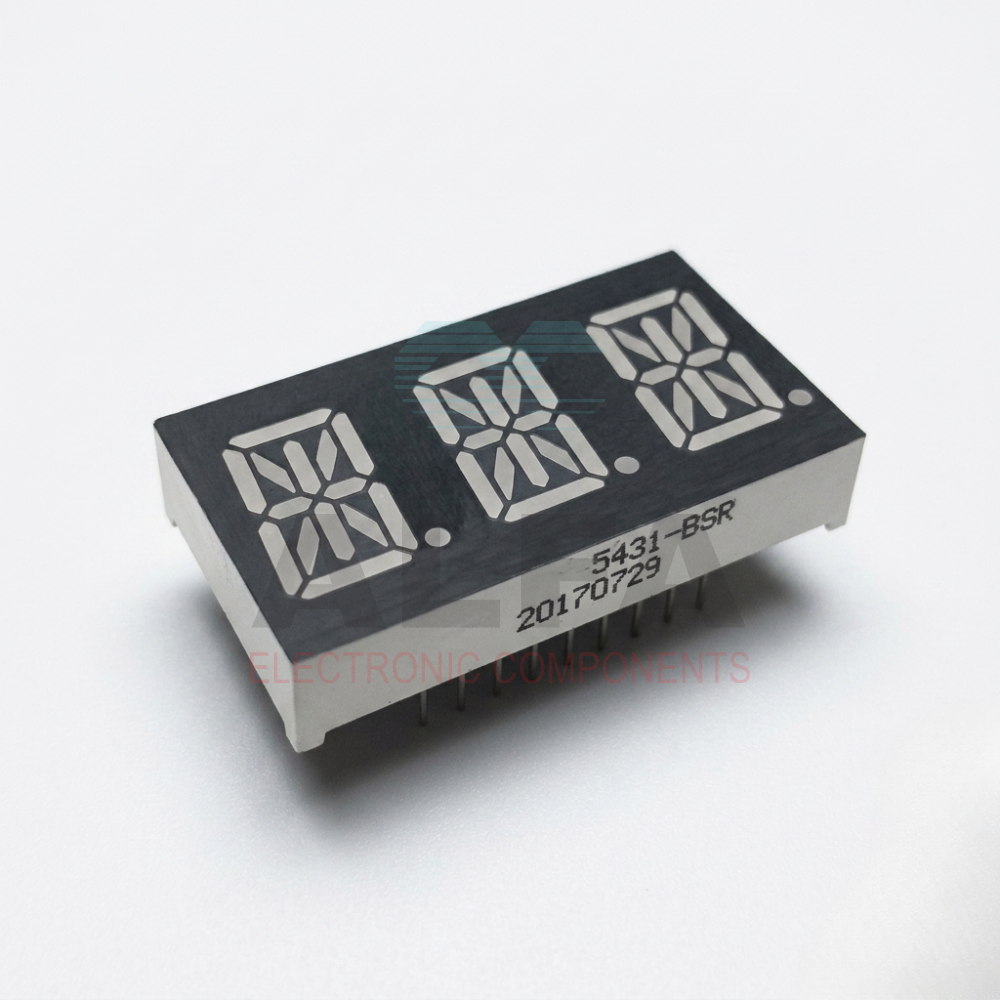

Alfa Electronic Components supplies a wide range of 14/16 segment alphanumeric displays for industrial electronics, instrumentation, embedded systems and electronic equipment manufacturing. The range includes single digit models as well as dual digit, three digit and four digit alphanumeric display formats.
Better Character Display Than Standard Seven Segment
A standard seven segment display is ideal for numeric readings. However, when the application requires alphabets or readable character codes, 14/16 segment displays provide a more suitable solution.
They can be used to display information such as:
- Equipment status codes
- Fault or error codes
- Channel names
- Mode indicators
- Short alphabetic labels
- Unit or parameter codes
- Product setting codes
- Numeric and alphabetic combinations
This makes them useful in electronic equipment where compact character communication is required without using a full dot matrix or LCD module.
Available Display Formats
The range includes different display formats depending on the amount of information required:
- Single digit alphanumeric displays
- Dual digit alphanumeric displays
- Three digit alphanumeric displays
- Four digit alphanumeric displays
Single digit displays are useful for one-character indicators, status symbols, channel markers and compact coded outputs. Dual digit and multi-digit options are useful where the product needs to show short words, codes, model values, settings or abbreviations.
Available Size Range
The available digit sizes include 0.39 inch, 0.5 inch, 0.53 inch, 0.54 inch, 0.8 inch, 1.0 inch, 1.2 inch, 1.5 inch, 2.0 inch and 2.3 inch.
Compact sizes such as 0.39 inch and 0.5 inch are suitable for small instruments, embedded modules, portable equipment and space-restricted PCB designs.
Medium sizes such as 0.8 inch, 1.0 inch and 1.2 inch are suitable for controllers, panel meters, equipment interfaces and industrial instruments.
Larger sizes such as 1.5 inch, 2.0 inch and 2.3 inch are suitable for applications requiring improved readability, larger panel windows or longer viewing distance.
Common Anode and Common Cathode Options
The range supports both Common Anode and Common Cathode configurations. The correct polarity depends on the display driver circuit, microcontroller interface and electrical design of the product.
Common Anode and Common Cathode displays are not directly interchangeable in every circuit. Buyers should confirm the required polarity before selecting a model or finalising the PCB design.
Suitable for Industrial and Instrumentation Applications
14/16 Segment Alphanumeric Displays are widely used in electronic products where both numeric and alphabetic output is required. They are suitable for industrial instruments, digital controllers, testing equipment, medical electronics, laboratory devices, power electronics and embedded display systems.
Their segmented LED construction provides clear character visibility while keeping the display format compact and practical for PCB-based products.
Model Selection and Datasheet Support
Alfa Electronic Components provides multiple models across different sizes and digit formats. Buyers can use the product grid to compare model number, digit size, body size, polarity and datasheet or contact availability.
Because these displays are used in PCB-based electronic products, the latest approved drawing must be verified before finalising PCB layout, enclosure design or production.
