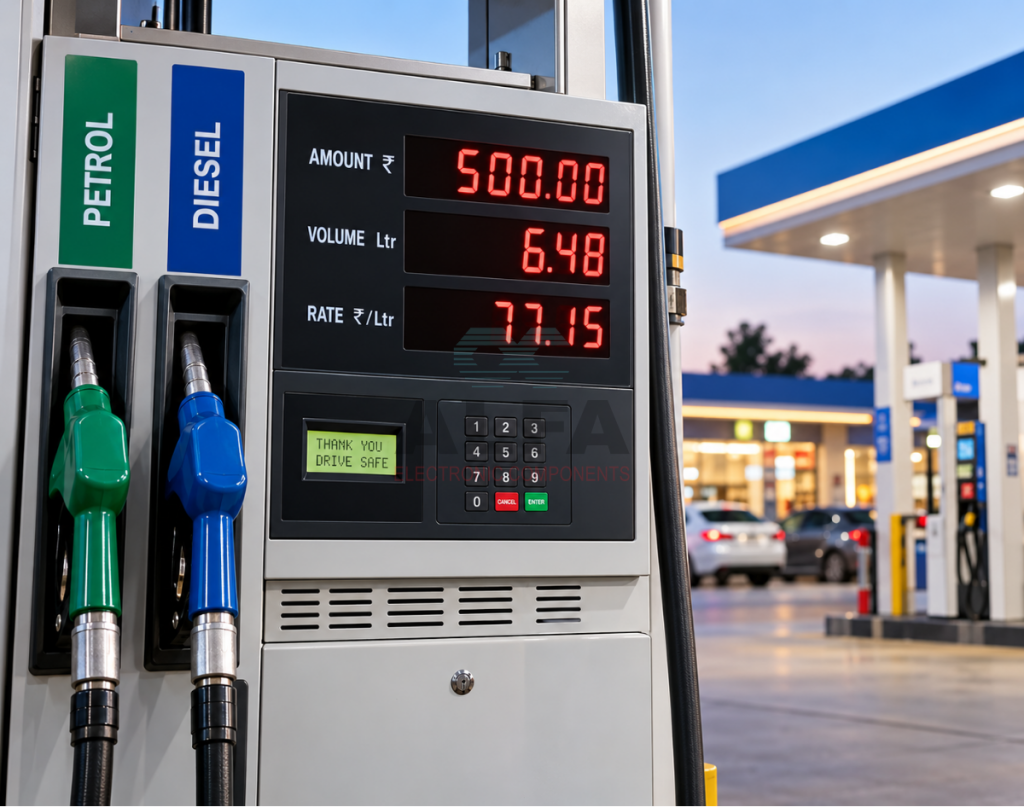

Petrol pumps and fuel dispensing systems require clear numerical indication for fuel quantity, transaction values, measurements and operating information. Alfa Electronic Components supplies 7 Segment LED Displays and Jumbo 7 Segment Displays for integration into fuel dispensing machines, fuel monitoring equipment, electronic controllers and related fuel measurement systems.
Fuel dispensing equipment relies heavily on numerical information. Values such as dispensed quantity, transaction amount and equipment parameters need to be presented in a format that can be quickly understood by operators and customers.
7 Segment LED Displays are particularly suitable for these applications because they provide a clear numerical display format and are available in different digit configurations.
4 Digit, 5 Digit and 6 Digit 7 Segment LED Displays can be considered for multi-digit information in fuel dispensing and measurement equipment, while smaller 1 Digit, 2 Digit and 3 Digit displays can be used for compact controllers, indicators and auxiliary equipment.
For applications requiring larger numerical characters and greater viewing distance, the Jumbo 7 Segment Display can also be considered.
The 1 Digit 7 Segment Display is a numeric LED display designed to present numbers from 0 to 9 clearly in electronic instruments, digital meters,…
A Two Digit Seven Segment Display is a compact LED numeric display designed to present values from 00 to 99 in digital counters, timers, measuring…
A 3 Digit 7 Segment Display is an integrated numeric LED display designed to present values from 000 to 999 in digital meters, counters, timers,…
A 4 Digit 7 Segment Display is an integrated numeric LED display designed to present values from 0000 to 9999 in digital meters, counters, timers,…
A 5 Digit 7 Segment Display is an integrated numeric LED display designed to present values from 00000 to 99999 in counters, measuring instruments, weighing…
A 6 Digit 7 Segment Display is an integrated numeric LED display designed to present values from 000000 to 999999 in counters, totalisers, meters, weighing…
A Single Digit Bi Color Seven Segment Display is a dual-color numeric LED display designed to show one digit from 0 to 9 while supporting…
A Seven Segment Jumbo Display is a large-size numeric LED display designed for applications where numbers must be visible from a longer distance. It is…
A 14/16 Segment Alphanumeric Display is an LED character display designed to show numbers, alphabets and selected symbols more clearly than a standard seven segment…
A 5x7 Round Dot Matrix Display is an LED character display made with a 5-column by 7-row dot arrangement, designed to show alphabets, numbers, symbols…
A 5x7 Square Dot Matrix Display is an LED character display designed with a 5-column by 7-row matrix arrangement, using square LED dots to show…
A 5x7 Round Bi Colour Dot Matrix Display is a dual-colour LED matrix display designed to show alphabets, numbers, symbols, short messages and status indications…
An 8x8 Round Dot Matrix Display is an LED matrix display designed with an 8-column by 8-row round dot arrangement, suitable for displaying alphabets, numbers,…
An 8x8 Bi Color Dot Matrix Display is a dual-color LED matrix display designed with an 8-column by 8-row round dot arrangement. It is suitable…
A Single Color LED Bar Graph is a linear LED display used to show level, progress, status, signal strength, battery condition, audio level, process value…
A Multi Color LED Bar Graph is a linear LED display used to show level, progress, signal strength, battery condition, audio level, process value or…
A Light Bar – Square Series is a single color LED indicator display designed in a square body format for status indication, signal indication, panel…
A Light Bar – Rectangle Series is a rectangular LED indicator display used for status indication, signal indication, panel indication, equipment display and machine interface…
A Light Bar – Round Series is a circular LED indicator display used for status indication, signal indication, panel indication, equipment display and machine interface…
| Application | Suitable Display Products |
| Fuel Dispensing Machines | 4 Digit 7 Segment Led Display, 5 Digit 7 Segment Led Display, 6 Digit 7 Segment Led Display |
| Fuel Quantity Displays | 4 Digit 7 Segment Led Display, 5 Digit 7 Segment Led Display, 6 Digit 7 Segment Led Display |
| Transaction Value Displays | 5 Digit 7 Segment Led Display, 6 Digit 7 Segment Led Display |
| Fuel Monitoring Equipment | 3 Digit 7 Segment Led Display, 4 Digit 7 Segment Led Display, 5 Digit 7 Segment Led Display, 6 Digit 7 Segment Led Display |
| Fuel Metering Equipment | 3 Digit 7 Segment Led Display, 4 Digit 7 Segment Led Display, 5 Digit 7 Segment Led Display |
| Fuel Station Controllers | 1 Digit 7 Segment Led Display, 2 Digit 7 Segment Led Display, 3 Digit 7 Segment Led Display, 4 Digit 7 Segment Led Display |
| Large Numeric Indicators | Jumbo 7 Segment Display |
Fuel dispensing equipment primarily communicates numerical information. Seven Segment LED Displays provide a straightforward format for displaying quantity, measurements, transaction values and operating parameters.
Different fuel-related systems require different numerical ranges. Alfa’s range extends from 1 Digit 7 Segment Led Display to 6 Digit 7 Segment Led Display, allowing the number of digits to be selected according to the information being displayed.
Multi-digit seven segment displays can be integrated into electronic fuel measurement and metering systems where numerical values need to be communicated clearly.
Smaller digit configurations can be considered for compact controllers, monitoring equipment and auxiliary electronic systems where only limited numerical information is required.
The Jumbo 7 Segment Display can be considered for applications where larger numerical characters are needed for improved visibility from a greater viewing distance.
Seven Segment LED Displays can be incorporated into PCB-based electronic assemblies developed for fuel dispensing, metering, monitoring and control equipment.
Selecting the right display depends on the type of numerical information, equipment design, required number of digits and viewing conditions.
Determine the maximum numerical information the equipment needs to display.
The physical size of the display should correspond with the equipment enclosure, front panel and available PCB space.
The required character size should also be considered according to the normal viewing distance.
Fuel dispenser interfaces normally require clear close-range visibility, while monitoring and information systems may need to be read from farther away.
For larger numerical indication, the Jumbo 7 Segment Display can be considered.
The required LED colour should be selected according to the equipment design, visibility requirements and available display configuration.
Equipment manufacturers should consider:
These parameters help determine whether a particular display configuration is suitable for the equipment.
Fuel dispensing and monitoring equipment may operate in different environmental and lighting conditions. Required visibility and the overall equipment design should therefore be considered during display selection.
Fuel dispensing equipment may require display arrangements that differ from standard individual display configurations.
Depending on the equipment design, manufacturers may require multiple numerical displays or display elements arranged together within a specific electronic assembly.
Alfa Electronic Components can discuss application requirements and help identify suitable display components or configurations for fuel dispensing machines, fuel monitoring systems, metering equipment and related OEM electronic equipment.
Alfa LED display products can be considered for integration into electronic equipment and systems including:
4 Digit 7 Segment Led Display, 5 Digit 7 Segment Led Display and 6 Digit 7 Segment Led Display can be considered for fuel dispensing equipment depending on the number of numerical positions required by the system.
4 Digit, 5 Digit and 6 Digit 7 Segment Led Displays can be considered for fuel quantity indication depending on the measurement range and display format of the equipment.
5 Digit 7 Segment Led Display and 6 Digit 7 Segment Led Display can be considered where fuel dispensing equipment needs to present longer numerical transaction values.
Yes. Seven Segment LED Displays can be integrated into electronic fuel metering and measurement equipment for numerical indication. The number of digits should be selected according to the measurement range and equipment design.
Depending on the information being displayed, 3 Digit, 4 Digit, 5 Digit or 6 Digit 7 Segment Led Displays can be considered for fuel monitoring equipment.
A Jumbo 7 Segment Display can be considered when numerical information needs to be visible from a greater viewing distance or when the equipment requires larger numerical characters.
The number of digits should be selected according to the maximum numerical value the equipment needs to present. The measurement range, transaction format, equipment dimensions and electronic design should all be considered.
Where available, provide the existing display’s number of digits, physical dimensions, character height, LED colour, pin configuration, electrical configuration and photographs or technical drawings. These details can help identify a suitable display option.
Custom display requirements can be discussed according to the equipment design, required display arrangement and available technical specifications. Existing samples, photographs, drawings or display specifications can help in understanding the application requirement.
Alfa Electronic Components specializes in 7 Segment LED Displays, Jumbo Displays, Dot Matrix Modules, Alphanumeric Displays, LED Bar Graphs, Arrow Displays, Clock Displays, and Custom LED Display Solutions for industrial and electronic applications since 1992.
