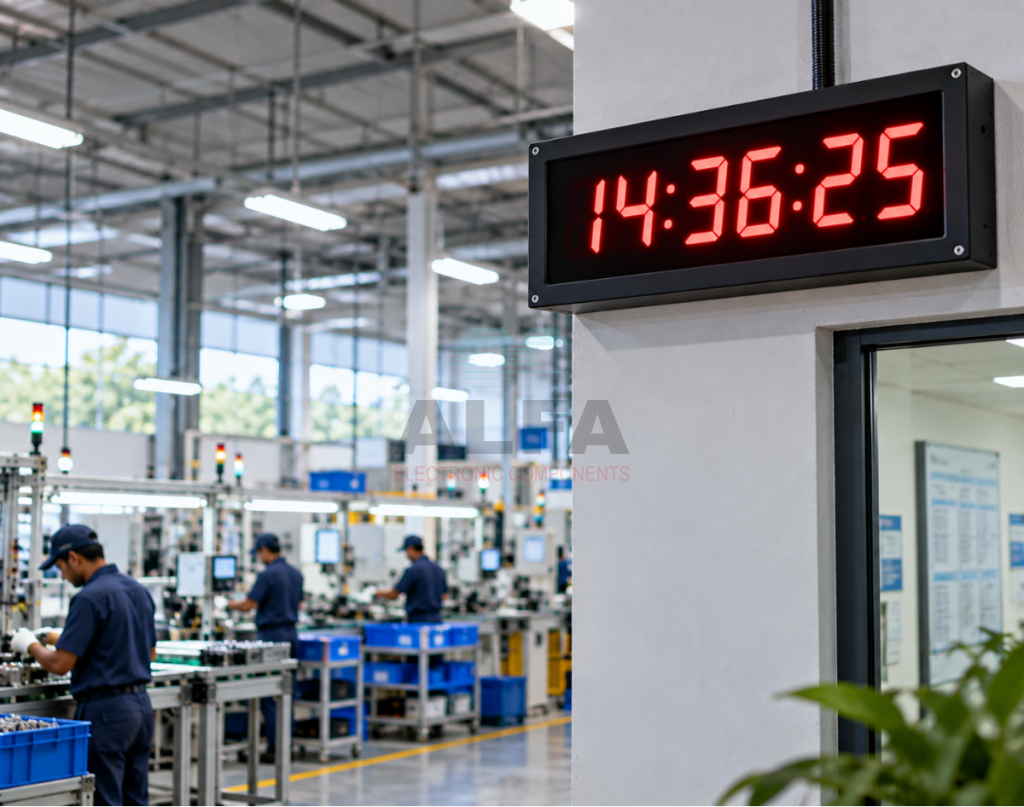

Digital clocks and time management systems require clear visual indication of hours, minutes, seconds and other time-related information. Alfa Electronic Components supplies 4 Digit 7 Segment Clock Led Displays, 6 Digit 7 Segment Clock Led Displays and other Seven Segment LED Displays for integration into digital clocks, timers, time display equipment and electronic time management systems.
Digital clock equipment requires numerical information to be displayed in a format that can be read quickly and clearly.
4 Digit 7 Segment Clock Led Displays are suitable for clock applications displaying hours and minutes, while 6 Digit 7 Segment Clock Led Displays can be considered where hours, minutes and seconds need to be displayed.
Standard Seven Segment LED Displays can also be used in electronic timers, counters and specialized time-related equipment depending on the circuit and display arrangement.
For applications where time information needs to be visible from a greater distance, the Jumbo 7 Segment Display can be considered as part of a larger electronic clock or time display configuration.
Alfa Electronic Components offers multiple display options for manufacturers developing digital clocks, timers and electronic time management equipment.
The 1 Digit 7 Segment Display is a numeric LED display designed to present numbers from 0 to 9 clearly in electronic instruments, digital meters,…
A Two Digit Seven Segment Display is a compact LED numeric display designed to present values from 00 to 99 in digital counters, timers, measuring…
A 3 Digit 7 Segment Display is an integrated numeric LED display designed to present values from 000 to 999 in digital meters, counters, timers,…
A 4 Digit 7 Segment Display is an integrated numeric LED display designed to present values from 0000 to 9999 in digital meters, counters, timers,…
A 5 Digit 7 Segment Display is an integrated numeric LED display designed to present values from 00000 to 99999 in counters, measuring instruments, weighing…
A 6 Digit 7 Segment Display is an integrated numeric LED display designed to present values from 000000 to 999999 in counters, totalisers, meters, weighing…
A Single Digit Bi Color Seven Segment Display is a dual-color numeric LED display designed to show one digit from 0 to 9 while supporting…
A Seven Segment Jumbo Display is a large-size numeric LED display designed for applications where numbers must be visible from a longer distance. It is…
A 14/16 Segment Alphanumeric Display is an LED character display designed to show numbers, alphabets and selected symbols more clearly than a standard seven segment…
A 5x7 Round Dot Matrix Display is an LED character display made with a 5-column by 7-row dot arrangement, designed to show alphabets, numbers, symbols…
A 5x7 Square Dot Matrix Display is an LED character display designed with a 5-column by 7-row matrix arrangement, using square LED dots to show…
A 5x7 Round Bi Colour Dot Matrix Display is a dual-colour LED matrix display designed to show alphabets, numbers, symbols, short messages and status indications…
An 8x8 Round Dot Matrix Display is an LED matrix display designed with an 8-column by 8-row round dot arrangement, suitable for displaying alphabets, numbers,…
An 8x8 Bi Color Dot Matrix Display is a dual-color LED matrix display designed with an 8-column by 8-row round dot arrangement. It is suitable…
A Single Color LED Bar Graph is a linear LED display used to show level, progress, status, signal strength, battery condition, audio level, process value…
A Multi Color LED Bar Graph is a linear LED display used to show level, progress, signal strength, battery condition, audio level, process value or…
A Light Bar – Square Series is a single color LED indicator display designed in a square body format for status indication, signal indication, panel…
A Light Bar – Rectangle Series is a rectangular LED indicator display used for status indication, signal indication, panel indication, equipment display and machine interface…
A Light Bar – Round Series is a circular LED indicator display used for status indication, signal indication, panel indication, equipment display and machine interface…
| Application | Suitable Display Products |
| HH Digital Clock | 4 Digit 7 Segment Clock Led Display |
| HH:MM Digital Clock | 6 Digit 7 Segment Clock Led Display |
| Factory Clock | 4 Digit 7 Segment Clock Led Display, 6 Digit 7 Segment Clock Led Display |
| School Clock | 4 Digit 7 Segment Clock Led Display, 6 Digit 7 Segment Clock Led Display |
| Hospital Clock | 4 Digit 7 Segment Clock Led Display, 6 Digit 7 Segment Clock Led Display |
| Office Clock | 4 Digit 7 Segment Clock Led Display, 6 Digit 7 Segment Clock Led Display |
| Electronic Timer | 3 Digit 7 Segment Led Display, 4 Digit 7 Segment Led Display, 4 Digit 7 Segment Clock Led Display |
| Six-Digit Timer | 6 Digit 7 Segment Led Display, 6 Digit 7 Segment Clock Led Display |
| Large Time Display | Jumbo 7 Segment Display |
| Time Management Equipment | 4 Digit 7 Segment Clock Led Display, 6 Digit 7 Segment Clock Led Display |
Seven Segment LED Displays provide a simple numerical format for displaying hours, minutes and seconds, making them well suited to digital clock and timer applications.
Alfa offers 4 Digit 7 Segment Clock Led Display and 6 Digit 7 Segment Clock Led Display options specifically relevant to electronic clock and timing applications.
A four-digit configuration can be used where the equipment displays hours and minutes, while a six-digit configuration can be considered where seconds also need to be shown.
Standard Seven Segment LED Displays can also be integrated into countdown timers, elapsed-time displays and other electronic timing equipment.
Compact displays can be used for equipment viewed from close range, while the Jumbo 7 Segment Display can be considered when larger numerical characters are required.
Seven Segment LED Displays can be incorporated into PCB-based electronic assemblies developed for digital clocks, timers and time management systems.
Selecting the appropriate clock display depends on the required time format, character size, viewing distance and electronic design of the equipment.
The first consideration is the information that the clock needs to display.
Clock-specific displays are particularly useful where the display arrangement is designed around conventional time formats.
Standard Seven Segment displays can be considered for custom timer, counter and timing equipment where the manufacturer requires a different numerical arrangement.
The required character height should be selected according to the equipment dimensions and expected viewing distance.
A compact desk or equipment-mounted clock will have different character-size requirements from a clock intended for a factory floor or large hall.
Consider where the clock will be installed and how far away the user will normally be positioned.
For larger time display systems, Jumbo 7 Segment Displays can be considered as part of the electronic display configuration.
Important parameters to consider include:
These requirements should be confirmed before finalising the display.
Not every digital clock or time management system uses a standard display arrangement.
OEM manufacturers may require multiple display elements within the same assembly for time, timer values, counters or additional numerical information.
Large clock systems may also require multiple Seven Segment displays arranged to create larger time readouts.
Alfa Electronic Components can discuss application requirements and help identify suitable display components or configurations for digital clocks, timers and electronic time management equipment.
Alfa LED display products can be considered for integration into electronic equipment and systems including:
The 4 Digit 7 Segment Clock Led Display can be considered for digital clocks displaying hours and minutes, while the 6 Digit 7 Segment Clock Led Display can be used where hours, minutes and seconds need to be displayed.
A 4 Digit 7 Segment Clock Led Display is suitable for electronic clock designs requiring four numerical positions for an HH time format.
A 6 Digit 7 Segment Clock Led Display can be considered where the clock needs six numerical positions to display hours, minutes and seconds.
A clock display is intended for time-oriented display arrangements, while a standard four-digit Seven Segment display is intended for general numerical information. The correct product should be selected according to the PCB, display arrangement and electronic design of the equipment.
Yes. Standard 3 Digit, 4 Digit and 6 Digit 7 Segment Led Displays, as well as clock-specific displays, can be considered for electronic timer applications depending on the required format.
A 4 Digit 7 Segment Clock Led Display or 6 Digit 7 Segment Clock Led Display can be considered depending on whether the clock needs to display hours and minutes or hours, minutes and seconds. For greater viewing distances, larger Seven Segment display configurations may be required.
The Jumbo 7 Segment Display can be considered for large time displays where larger numerical characters are required. Multiple Jumbo displays may be arranged according to the clock design.
Display size should be selected according to the expected viewing distance, available equipment space, enclosure dimensions and required character visibility.
Custom display requirements can be discussed according to the clock design, number of digits, required arrangement, dimensions and available technical specifications. Existing drawings, samples or application details can help in understanding the requirement.
